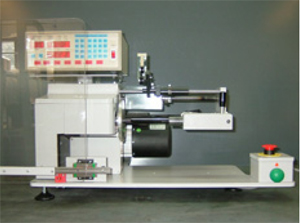

Coil Winder TD3T
Single Head Bench Winder
Model TD3T is a quality built, single head bench winder controlled by a well-proven
microprocessor unit with a memory capacity capable of storing 1000 programmes.
Each programme controls:
- Start position.
- Winding width and wire diameter.
- Number of turns.
- Acceleration and deceleration.
- Winding speed and direction.
All machines are equipped with a fail-safe brake and polycarbonate guard.
Variations in mechanical specifications are offered, including:
- With or without traverse.
- With or without tailstock.
- Low speed, high torque gear motor.
- More powerful drive motor.
- Large pitch facility.
- Multiple wire guides.
- Long machine bed to customer’s requirements.
- Foil/strip support table option.
- Tooling to suit customer’s specifications.
Technical Specifications
| Wire Pitching | 0.001mm - 9.999mm |
| Coil Diameter | up to 200mm |
| Winding Length | 150mm, optional 250mm |
| Spindle Speed | up to 10,000 rpm |
| Supply | 240V, 50 Cycles, 10 Amp |
| Motor | 0.44 kW |
