Model PDDP

Driven Rolloff Payoff with Constant Tension

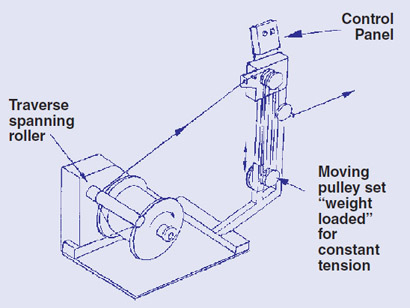

Wyrepak’s driven payoff unrolls material without twist and with constant tension.  The accumulator stores 3 to 4 meters of material, providing a smooth, controlled operation.

Ideal for most types of bare and insulated wire, including communication cables, special cables, on twinners, bunchers, and stranders.  In fact, this unit handles almost any material which must be unrolled without twist.

• Pull and cut harness machines
• Pull and cut conduit inners and outers
• Extrusion lines

Wire range:

• 0.1mm to 6mm stranded or single end
• Up to 12mm special

Accumulator controlled D.C. driven reel

Standard running speed: 300m (1000') per minute

Standard tension range: 0.1 to 15 kilograms

• For DIN 400 reel: Unit Ref. DRBP−8
• For DIN 500 reel: Unit Ref. DRBP−10
• For DIN 630 reel: Unit Ref. DRBP−12
• Modified units are available for larger reels.

Pintle method for each side of the reel is available as an option.
