Models PD-26 & PD-26A

Higher Speed Units

Standard units allow payoff up to 600 feet/min (184 meters).  Higher speeds of up to 1200 feet/min (370 meters) can be acheived by using Wyrepak’s PD-26 and PD-26A units.  The tension brush rotates initially at a slow speed and then faster as speed and tension increase when spools go from full to empty.

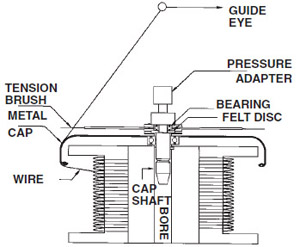

PD-26A unit for 6" (200mm) to 14" (350mm) spools

Composite of PD-26 unit for
16" (406mm) to 49" (1245mm) spools
