Wyrepak Industry Products - Payoff Stands

Some of the links below are in Adobe Acrobat PDF format and download time may vary based on your Internet connection.  You will also require the latest version of Adobe Reader to open them.

Adobe Reader

Once you have installed Adobe Reader, you can access any of the following:

PD-7 Tyltbak Payoff Stand PD-7 - Tyltbak Payoff Stand

The Wyrepak "Tyltbak" Payoff Stand is designed to pay off one wire or multiple wires to wire drawing, rewinding, insulating, bunching, tinning, or patenting.  It allows one-man, fast and easy positioning of 16" to 24" flange diameter reels without using any overhead or other material handling equipment.  This allows larger payoff packages to be used with no lifting of reels or the assistance of other equipment.

Click here to read more about this product.

Download the PDF document.

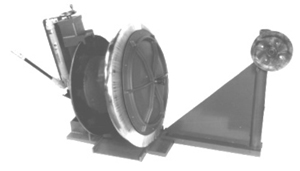

PD-22 Hydratylt Payoff PD-22 - Hydratylt Payoff Stand

Wyrepak’s Hydratylt stand is a self-contained, large reel payoff for reels 16" to 36" (400-900 mm).  The simple design enables heavy reels to be easily tilted to the ideal payoff position of approximately a 30° tilt.

Click here to read more about this product.

Download the PDF document.

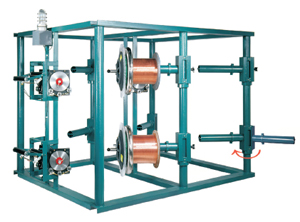

PD-3A Multi Head Payoff PD-3A - Multiple Head Payoff Unit

The Wyrepak multiple head payoff stand, to wire bunchers and other operations, is a unitized payoff system including Wyrepak rotatable cap/tension brush units (see product PD-1).  Any wire material, including copper, alloys and aluminum, can be paid off from any size or type of reels with wire breaks essentially eliminated, even in fine wire.  Most insulated wire and some fiber optic material can also be processed with this Wyrepak system.

Click here to read more about this product.

Download the PDF document.


PD-9 - High Speed Payoff Unit

Wyrepak’s single and multiple spindle high speed payoff stands are versatile, complete units of unitized welded steel construction, ready for string-up as received, yet movable as a unit.

  • Available for 6" (150 mm) thru 12" (305 mm) flange diameter reels.
  • 3 dome sizes, including guide eyes.
  • Easy loading spindles which swing into fixed domes for larger sized reels.
  • Equipped with Wyrepak rotatable-cap tension brush units (see PD-1).

Click here to read more about this product.

Download the PDF document.


PDDP - Driven Rolloff Payoff with Constant Tension

PDDP Driven Rolloff Payoff

Wyrepak’s driven payoff unrolls material without twist and with constant tension.  The accumulator stores 3 to 4 meters of material, providing a smooth, controlled operation.

Ideal for most types of bare and insulated wire, including communication cables, special cables, on twinners, bunchers, and stranders.  In fact, this unit handles almost any material which must be unrolled without twist.

  • Pull and cut harness machines
  • Pull and cut conduit inners and outers
  • Extrusion lines

Click here to read more about this product.

Download the PDF document.


Payoff stands are also being sold by Huestis Industrial, who now owns Wyrepak.
Click here for more information.
